IC stands for Invisible Cities. and can be found on Github as next-exp/IC. Blame for the name to J.J. Gómez-Cadenas, who proposed and started the project. The original developers of IC were J.J. Gómez-Cadenas, J. Generowicz, J.M. Benlloch, G. Martinez-Lema and M. Kekic. The main architect of the code was J. Generowicz.

Language: Python; Based: Numpy, Pandas

This section is focused on reviewing how the code is structured and where the installation guides can be found.

Code

IC is a reconstruction software structured in algorithms/programs named cities. The code is written in Python, but it uses Numpy and Pandas for data analysis and as a manipulation tool. Each of the cities is focused on a specific reconstruction stage (e.g. raw waveforms integration, energy correction, deconvolution, etc…), and follow dataflow data processing: they resemble a pipeline of data transformations. More details about the dataformat can be found in a previous IC-crash-course in Dataflow section. A complete review about the IC repository can be found on a previous IC-crash-course under IC-structure.

Installation

There is a Quickstart guide at the next-exp/IC repository with anything related to its installation. The simplest way of installing the software is to download the repository with

git clone git@github.com:next-exp/IC.git

Note that the cloning process would be different for users and developers. If someone only wants to use the software they can download from next-exp, but it is recommended for both users and potential developers to fork the repository, and then clone their fork. Check additional details about it in Workflow section. Once the repository is downloaded, run

source manage.sh install_and_check 3.8

from the top level of the IC folder. This will download and install miniconda if necessary prior to installing IC and its dependencies. Miniconda would be installed in a default location ($HOME/miniconda). If you already have an anaconda installation, the first step will be skipped.

Usage

After running the installation commands, your shell will be configured to use IC. To set up IC in a new shell run

source manage.sh work_in_python_version_no_tests 3.8

City Structure

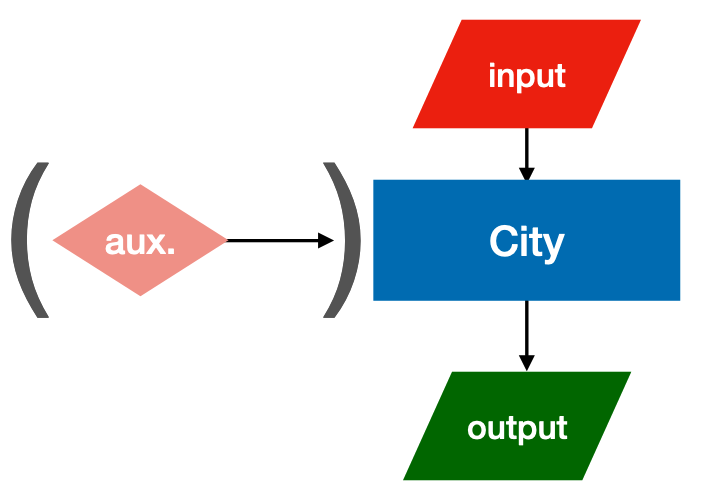

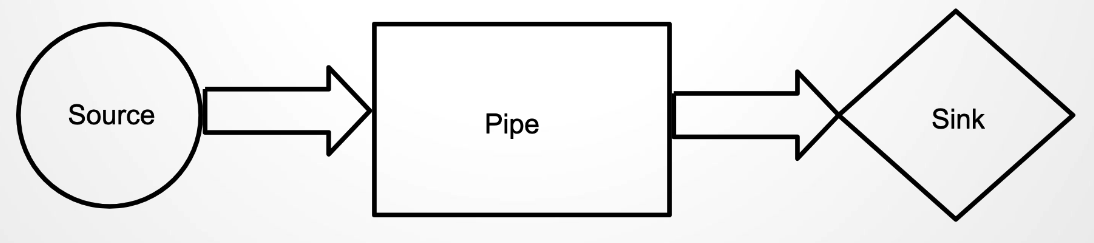

IC cities follow dataflow data processing: they are designed to resemble a pipeline. By reading this pipeline one should be able to understand what operations are made and in which order.

More details about how this data format works can be found in a previous IC-crash-course. Resembling this pipeline structure, each city needs a specific type of input data format, and creates a specific output to follow the rest of the production flow:

Configuration files

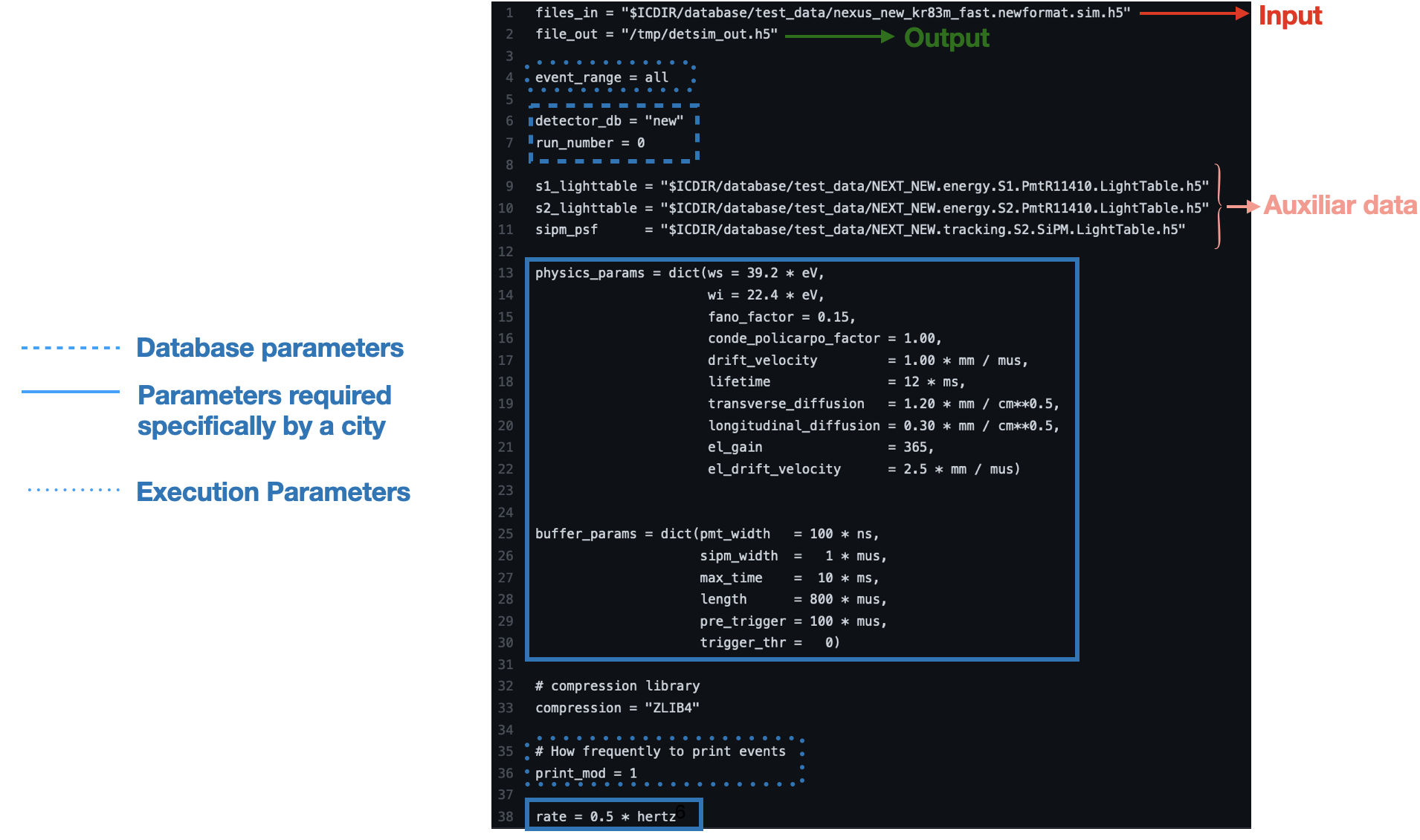

Cities may require some parametrisation and, as it is represented on the previous figure, some of them require additional auxiliar (aux) data (like maps, PSFs, etc). Configuration files (config, config_file_city.conf) provide to the city this specific information they require to run. Examples for each city are located in IC/invisible_cities/config. Official production config files (and production scripts) are located in next-exp/CERES repository.

Note

Config files located in IC/invisible_cities/config are only for testing purposes and not realistic.

Common arguments to every city

All cities in IC require at least the following arguments

Parameter	Type(s)	Description
files_in	str or Sequence[str]	Input file name(s).
file_out	str	Output file name.
compression	str	Compression option. Always "ZLIB4".
event_range	int, (int, int), (int, last) or all	Range of events to process. If an integer N is provided, the first N events are taken. Two integers (N, M) will run from event N to event M. If (N, last) the first N events will be skipped. If all, all events will be processed.
print_mod	int	How frequently to print progress to the std output.
detector_db	str	Name of the detector for database access.
run_number	int	Run number corresponding to the data. Needed to load the appropriate sensor parameters. If negative, the processing is assumed to be a MC run with the corresponding to the detector conditions of run abs(run_number).

How to run a city

Once it is clear the parametrisation needed to run a city (once IC environment is set), you just need to type:

city city_name config_file_city.conf

where config_file_city.conf corresponds to the specific configuration file for that city.

List of Cities

IC cities can be categorised depending on their purpose on the following list:

MAIN PRODUCTION:

• Irene
• Penthesilea
• Sophronia
• Dorothea
• Esmeralda
• Beersheba
• Isaura
• Eutropia

CALIBRATION:

• Phyllis
• Trude
• Berenice

ONLY FOR MC:

• Detsim
• Buffy
• Diomira
• Hypathia

DEBUGGING/CONTROL:

• Isidora
• Olivia

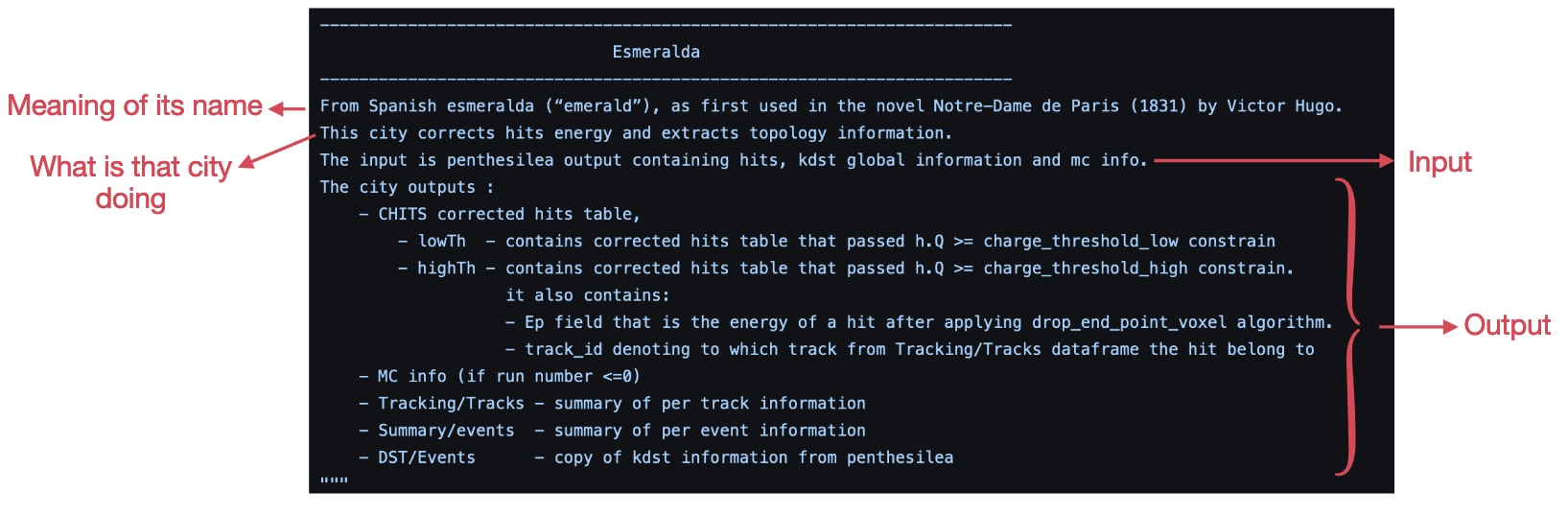

Each of this cities include a small description in the IC repository (IC/invisible_cities/cities),

and under Production Flow a complete review of the IC cities chain can be found for both data and simulations.

A tour through the Invisible Cities

The material from the IC software course that took place in April 2024 is available in a github repository It contains a series of jupyter notebooks which describe the cities, their inputs and outputs. The user can execute the notebooks, and all inputs are included (config files, data files, etc.). The recording of the course is also available in this docDB page.

Contact

If you are missing something, or you would like to contribute, contact any of our Software Manager: Gonzalo Martínez-Lema

If you have any question, or you would like to discuss something related to NEXUS with other users or developers, you can also write on the Slack Channels:

• #IC_support: Support channel for users to raise issues and questions.
